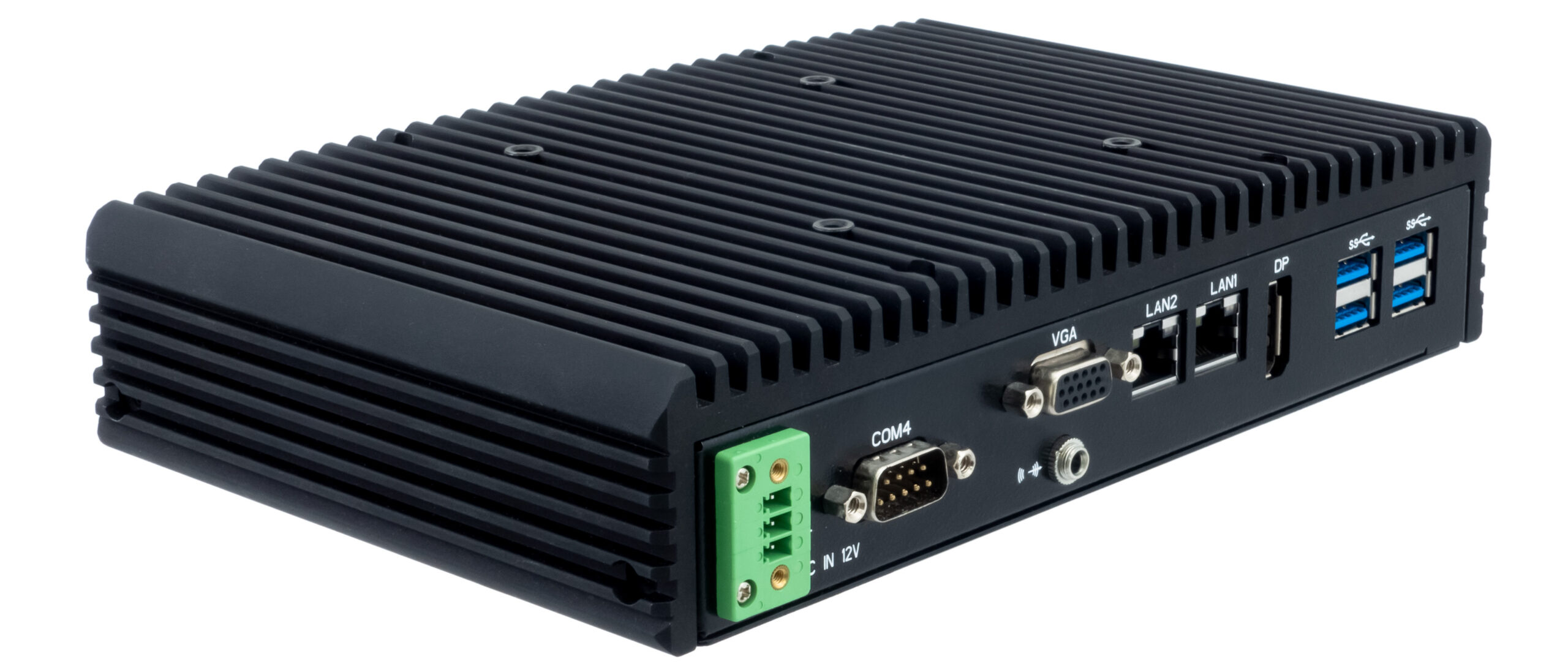

Embedded Box Computer EBC11 front
Embedded Box Computer EBC11 back

EBC11 – Embedded Box Computer

with Intel Celeron J3350 or Pentium N4200, 12VDC voltage input and four serial interfaces.
The robust and compact metal housing of the embedded Box PC EBC11 contains a single board computer. The Intel® Celeron N3350 and Pentium N4200 are available as processors. The EBC11 is operated with an input voltage of 12VDC and has several mounting options. Optionally, a WLAN kit can be installed.

Data-sheet-EBC11-1.pdf

Additional information

CPU

Intel® Celeron N3350 (2x 1,10 GHz) 0°C ~ 40°C
Intel® Pentium N4200 (4x 1,10 GHz) 0°C ~ 40°C
Speicher

DDR3L SO-DIMM Modul max. 8GB
Ethernet

2x 10/100/1000Mbps
Seriell / USB

3x RS232
1x RS232/422/485
2x USB 2.0
4x USB 3.0
Massenspeicher

2,5" SATA HDD or 2,5" SATA SSD or mSATA
Schnittstellen

1x DP
1x VGA
1x Line Out
Erweiterung

1x mSATA
1x mini PCIe
Betriebssystem

Microsoft® Windows 10
Microsoft® Windows 10 IoT
Linux Ubuntu
Android
Maße (BxHxT)

218 x 45 x 148mm
Gewicht

~2,0kg
Netzteil

12V DC inkl. external power supply 110/240VAC
