MRP – measurement and control PC, 19 “/ 4HE / 8.4”

MRP measurement and control PC CPCI system with measurement technology peripherals

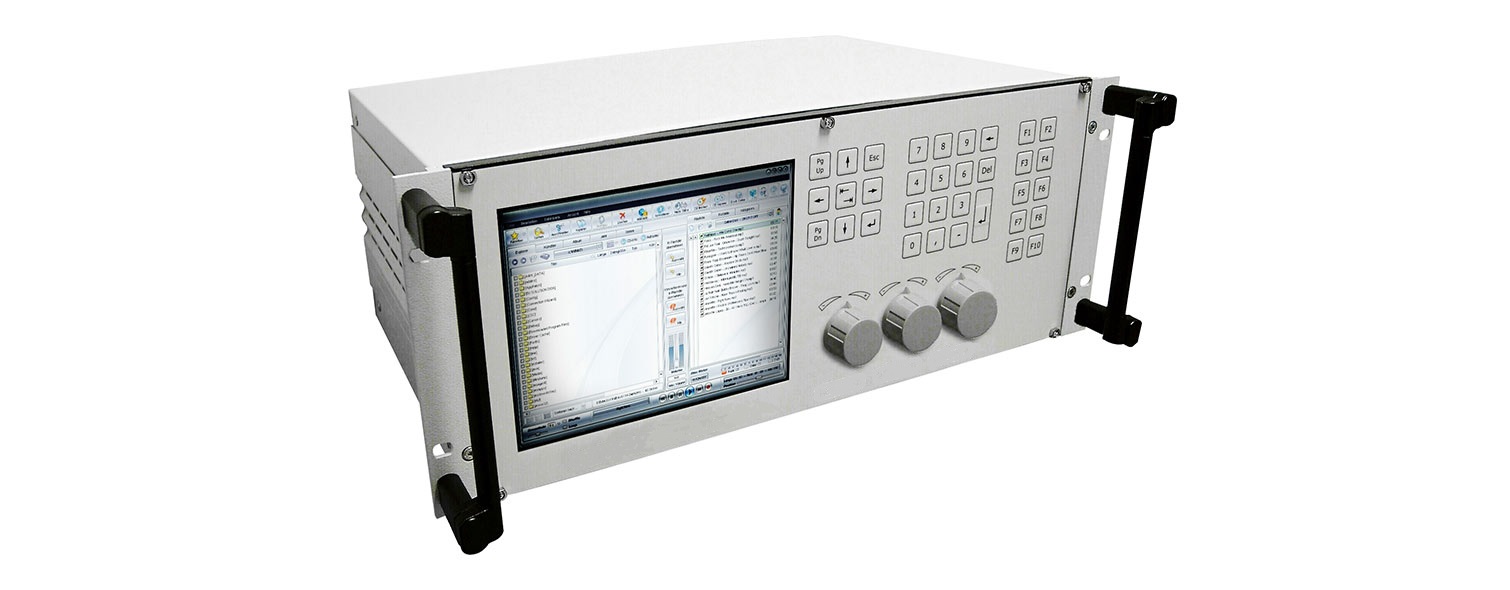

HF subrack 19 “/ 4U with 8.4” TFT display, front membrane keyboard, modular IPC , Network / fieldbus connection and measurement technology cards.

APPLICATIONS
The MRP is used as a high-performance computer in test stands. It contains a comfortable operating [&] visualization system and a measured value acquisition. It is used as an autonomous controller that works with various other IPCs in a decentralized automation architecture as a networked communication system. The device is installed in a 19 “switch cabinet with a swing frame and front attachment.

DESCRIPTION
The MRP consists of a 19″ / 4HE / 84TE subrack in HF version . The aluminum front panel contains an 8.4 “LCD with SVGA resolution, protective screen, membrane keyboard with insertable labeling strips, 8×8 matrix encoder and 3 special potentiometers with zero point at 180 ° angle of rotation and spring reset on both sides.

Internally, a CPCI backplane with 8 slots and a Pentium M CPU with 2GHz are integrated. The other bus slots are occupied by digital and analog peripheral cards.

OPTIONS
The computing power of the CPU can be selected from 1.2GHz to 2GHz. The main memory can be expanded up to 1GB, a bootable CompactFlash or a 2.5 “hard disk can be added. All common PC interfaces are available and are wired to the rear wall of the slide-in unit.

The 24VDC or 90-240VAC power pack is equipped with a filter, LEDs and power switch
. The rear wall of the MRP contains wiring boards with soldered connectors to avoid flat cables.
