PPC 17 p1 – Panel PC mit 17″ TFT with optional PoE – Panel-PCs

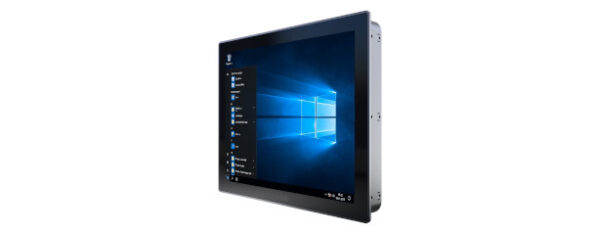

The Panel PC PPC17 p1 contains a 17″ LCD with SXGA resolution and a resistive or projected capacitive touchscreen.
The fanless Intel® Celeron® N3350, J3455, Pentium® N4200 and AtomTM x7 E3950 CPUs are available as processors.
The PPC17 p1 is equipped with a 9-36VDC wide-range power supply and has an IP65 aluminum or stainless steel front.

Data-sheet-PPC17-p1-1.pdf

Additional information

CPU

Intel® Celeron® N3350 2C, 2.4GHz, Intel® Celeron® J3455 4C, 2.3GHz, Intel® Pentium® N4200 4C, 2.5GHz, Intel® Atom™ x7 E3950 4C, 1.8GHz (-20°C ~ 50°C)
Display

TFT 17" SXGA
Anmerkung Display

optional: sunlight readable
Touch­screen

Multitouch (projected capacitive), Resistiv; 5-Draht
Speicher

max. 8GB DDR3L SO-DIMM
Ethernet

2x Intel® I210IT (10/100/1000), PoE IEEE 802.3af (optional)
Seriell / USB

3x USB 3.0, 2x RS232/422/485
Massenspeicher

2,5" SATA III SSD, 2,5" SATA III HDD, mSATA
Erweiterung

1x full-sized Mini PCIe (mSATA or 3G/4G card with USB 2.0 signal), 1x full-sized Mini PCIe (PCIe or 3G/4G card with USB 2.0 signal), 1x SD Slot, 1x SIM Slot
Betriebssystem

Windows 10 IoT Enterprise LTSB 2016, Windows 10 IoT Enterprise LTSC 2019, Ubuntu 16.04 LTS
Maße (BxHxT)

395,8 x 328,2 x 74,5 mm, VA: 436 x 368 x 87 mm, VESA100
Netzteil

9-36V DC
Anmerkung Netzteil

optional: Power over Ethernet (PoE)
