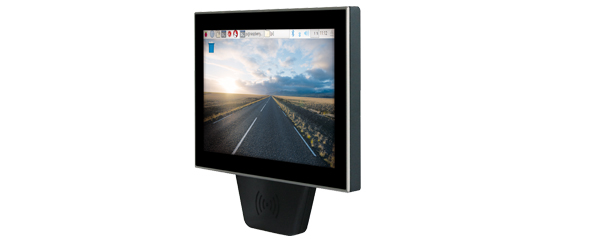

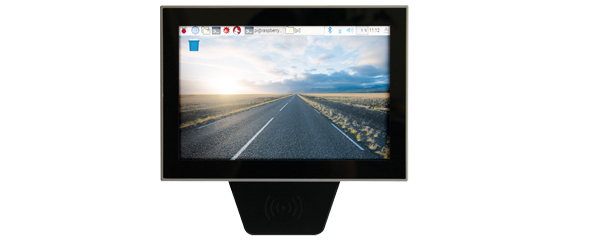

RPi10 RFID – Raspberry-Pi PC with 10.1″ TFT and RFID

The robust aluminum housing of the industrial-Raspberry-Pi PC RPi10-RFID contains a 10.1″ widescreen multitouch LCD with a resolution of 1280×800 pixels. The Raspberry Pi 3B / 3B+ / 4B with its ARM Cortex A53 or A72 is used as the CPU unit.
The RPi10-RFID has an input voltage of 09 to 36VDC and has a VESA-75 mounting on the back. External power packs for different power supplies are available.
The integrated TWN4 Multitech RFID reader / writer supports the frequencies 125 / 134.2 kHz and 13.56 MHz as well as all common transponders.
The standard housing color is RAL9005 (rear part) and natural aluminum for the front frame and can be changed according to customer requirements.

Also available with Power over Ethernet (PoE) as RPi-RFID-PoE.

Additional information

CPU

3B: ARM Cortex A53 / 4x 1,2GHz quad core
3B+: ARM Cortex A53 / 4x 1,4GHz quad core
4B: ARM Cortex A72 / 4x 1,5GHz quad core
Display

TFT 10,1" WSVGA
Touch­screen

Multitouch (projected capacitive)
Speicher

3B/3B+: 1GB LPDDR2
4B: 2, 4 or 8GB LPDDR4
Ethernet

3B: 1x 10/100Mbps
3B+: 1x 10/100/300Mbps
4B: 1x 10/100/1000Mbps
Seriell / USB

3B/3B+: 3x USB 2.0
4B: 1x USB 2.0 and 2x USB 3.0
Massenspeicher

16GB Micro-SD SDHC Class10, 32GB Micro-SD SDHC Class10, 64GB Micro-SD SDHC Class10
Erweiterung

Real time clock (RTC), DIO with optocouplers, I²C, CAN, RS232
Betriebssystem

Raspbian, Microsoft® Windows 10 IoT Core
Maße (BxHxT)

258x238x48 mm
Gewicht

2,5 kg
Netzteil

12/24/48 VDC, 9-36V DC
Anmerkung Netzteil

others on request
