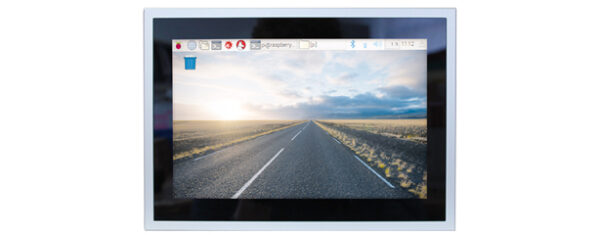

RPi 10 Xtend – Raspberry-Pi Panel-PC with PiXtend® v2-l and 10,1″ TFT

The rugged stainless steel housing of the industrial Raspberry Pi Panel PC RPi10-Xtend includes a 10,1 “widescreen multi-touch LCD in an aluminum front with a resolution of 1280×800 pixels. The CPU unit is the Raspberry Pi 3B+ / 4B with its ARM Cortex A53 or A72.
With the integrated I / O and interface extension PiXtend® v2-L from Qube Solutions, this Panel PC may be used as a programmable logic controller to be installed in consoles, cabinets or walls. It also includes a visualisation-, operation- and programming unit.

Data-sheet-RPi10-Xtend-Panel-PC.pdf

Additional information

CPU

3B: ARM Cortex A53 / 4x 1,2GHz quad core
3B+: ARM Cortex A53 / 4x 1,4GHz quad core
4B: ARM Cortex A72 / 4x 1,5GHz quad core
Display

TFT 10,1" WSVGA
Touch­screen

Multitouch (projected capacitive)
Speicher

3B/3B+: 1GB LPDDR2
4B: 2, 4 or 8GB LPDDR4
Ethernet

3B: 1x 10/100Mbps
3B+: 1x 10/100/300Mbps
4B: 1x 10/100/1000Mbps
Seriell / USB

3B/3B+: 3x USB 2.0
4B: 1x USB 2.0 and 2x USB 3.0
Massenspeicher

16GB Micro-SD SDHC Class10
Erweiterung

16x digital input, 12x digital output, 6x PWM output, 4x relais 230 V, 4x analog voltage input, 2x analog current input, 2x analog voltage output, 1x RS232, 1x RS485, 1x CAN, real time clock (RTC), 4x GPIO
Betriebssystem

Raspbian, Support for Codesys, Linux, FHEM, Python, Node-RED und OpenPLC
Maße (BxHxT)

269,5 x 192,5 x 76,6 mm
Gewicht

1,6 kg
Netzteil

12/24 VDC
