SAC 17-VA – IP66 stainless steel all-in-one-PC with 17″ TFT

The robust IP66 stainless steel housing of the industrial-all-in-one PC SAC17-VA contains a 17″ TFT with SXGA resolution and optionally a pcap multitouch or a 5-wire resistive touch.
The processors are the Intel® CoreTM i5-7300U with up to 3.5 GHz and the Intel® Pentium® 4415U with 2.3 GHz.
The SAC17-VA is equipped with a 12 / 24 VDC power supply and has a VESA100 attachment on the back.

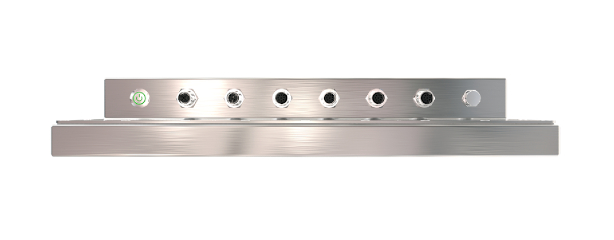

The cables are fed through waterproof M12 connectors.

Data-sheet-SAC17-VA-1.pdf

Additional information

CPU

Intel® Core i5-7300U, Intel® Pentium 4415U
Display

TFT 17" SXGA
Touch­screen

Multitouch (projected capacitive)
Speicher

up to 16 GB DDR4 SO-DIMM
Ethernet

2x GbE LAN with waterproof M12 connectors
Seriell / USB

2x USB 2.0 with waterproof M12 connectors
Massenspeicher

1x 2,5" HDD or SSD
Erweiterung

1x mini PCIe
Betriebssystem

Windows 10 IoT Enterprise LTSB 2016, Windows 10 IoT Enterprise LTSC 2019, Ubuntu 16.04 LTS
Maße (BxHxT)

450 x 381 x 70mm
Gewicht

~8,5kg
Netzteil

12/24 VDC
Optionales Zubehör

Table bracket, Wall bracket
