SAC 21 – all-in-one PC with 21,5″ TFT

The robust sheet steel housing of the industrial-all-in-one PC SAC21 contains a 21.5 “LCD with full HD resolution and a 3mm thick glass front with an integrated multi-touch screen (pcap). Intel® i7 / i5 / i3 and ATOM Quad-Core® N3160 are available as processors. The SAC21 can be equipped with a 12 / 24VDC or 90-265VAC power supply and has a VESA attachment on the back. The standard housing color is RAL9005 and can be changed according to customer requirements.

Data-sheet-SAC21.pdf

Additional information

CPU

Intel® dual-core N3060 (2x 1,6 GHz, up to 2,48 GHz, 2 MB Cache), Intel® quad-core N3160(4x 1,6 GHz, up to 2,24 GHz, 2 MB Cache), Intel® dual-core i5-7300U (2x 2,6 GHz, up to 3,5 GHz, 3 MB Cache), Intel® dual-core i7-6600U (2x 2,6 GHz, up to 3,4 GHz, 4 MB Cache), Intel® dual-core i5-6300U (2x 2,4 GHz, up to 3,0 GHz, 3 MB Cache), Intel® dual-core i3-6100U (2x 2,3 GHz, 3 MB Cache)
Display

TFT 21,5" Full HD
Touch­screen

Multitouch (projected capacitive)
Speicher

Intel® i3i5/i7: max. 16GB-DDR3, Intel® J1900: max. 8GB-DDR3, Intel® D2550: max. 4GB-DDR3
Ethernet

2x 10/100/1000Mbps

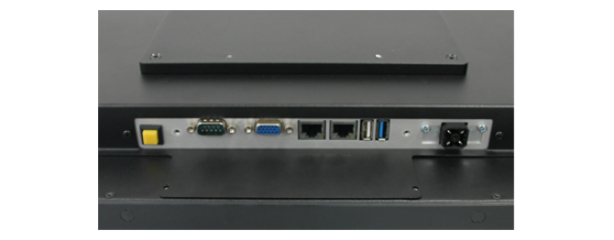

Seriell / USB

Intel® J1900: 1x RS232, 1x USB 3.0, 1x USB 2.0, Intel® D2550: 1x RS232, 2x USB 2.0
Massenspeicher

mSATA 2-8GB SLC or 16/32/64/128/256GB MLC, 2,5" SATA HDD min. 250GB
Erweiterung

WLAN; RS232/422/485; USB; Audio
Betriebssystem

Microsoft® Windows 7, Microsoft® Windows Embedded Standard 7, Microsoft® Windows 8.1, Microsoft® Windows Embedded 8 Standard, Microsoft® Windows 10, Microsoft® Windows 10 IoT
Maße (BxHxT)

516,5x313x60,5mm
Gewicht

6,1 kg
Netzteil

12/24 VDC, 115/230 VAC
Anmerkung Netzteil

90-264 VAC
Option

Stand or arm with turning, lateral buckling and locking device, Monitor unit without PC, Input VGA or DVI
