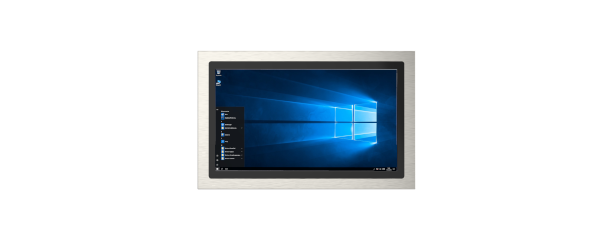

24" industrial terminal (all-in-one-pc), stainless steel and IP66
24" Industrie Terminal (all-in-one-PC), Edelstahl und IP66, Schrägansicht
24" Industrie Terminal (all-in-one-PC), Edelstahl und IP66, Seitenansicht
24" Industrie Terminal (all-in-one-PC), Edelstahl und IP66, Rückansicht
24" Industrie Terminal (all-in-one-PC), Edelstahl und IP66, Schnittstellenansicht
New

SAC 24-VA – IP66 stainless steel all-in-one-PC with 24″ TFT

The robust IP66 stainless steel housing of the industrial all-in-one PC SAC24-VA contains a 23.8″ TFT with full HD resolution and a0 pcap multi-touch.
The Intel® Celeron® J6412 with up to 2.6 GHz and the Intel® Atom® x6425RE with 1.9 GHz are available as processors.
The SAC24-VA is equipped with a 12 / 24 VDC power supply unit and has a VESA100 mount on the rear.
The cable is fed in via waterproof M12 connectors.

Also available in sizes 15″, 17″ and 21″.

datasheet-sac24-va

Additional information

CPU

Intel® Core i5-7300U, Intel® Pentium 4415U
Display

TFT 21,5" Full HD
Touch­screen

Resistiv 5-Draht, Multitouch (projected capacitive)
Speicher

up to 16GB DDR4 SO-DIMM
Ethernet

2x GbE LAN with waterproof M12 connectors
Seriell / USB

2x USB 2.0 with waterproof M12 connectors
Massenspeicher

1x 2,5" HDD or SSD
Erweiterung

1x mini PCIe
Betriebssystem

Windows 10 IoT Enterprise LTSB 2016, Windows 10 IoT Enterprise LTSC 2019, Ubuntu 16.04 LTS
Maße (BxHxT)

590 x 395 x 70mm
Gewicht

~9,5kg
Netzteil

12/24 VDC
Option

Table bracket, Wall bracket
