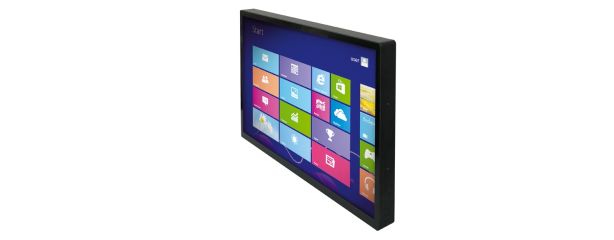

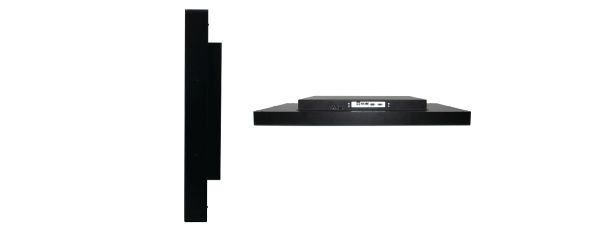

SAC 32 – all-in-one PC with 32″ TFT

System for digital signage or operation- and visualisation of machine controls with 32″ full HD display, format 16:9,1920×1080 pixel, brightness of 295 cd/m²; multi touch-screen (pcap); SBC from Intel® Celeron J1900 up to Intel® i3/i5/i7.

Additional information

CPU

Intel® dual-core N3060 (2x 1,6 GHz, up to 2,48 GHz, 2 MB Cache)
Intel® quad-core N3160(4x 1,6 GHz, up to 2,24 GHz, 2 MB Cache)
Intel® dual-core i5-7300U (2x 2,6 GHz, up to 3,5 GHz, 3 MB Cache)
Intel® dual-core i7-6600U (2x 2,6 GHz, up to 3,4 GHz, 4 MB Cache)
Intel® dual-core i5-6300U (2x 2,4 GHz, up to 3,0 GHz, 3 MB Cache)
Intel® dual-core i3-6100U (2x 2,3 GHz, 3 MB Cache)
Display

LCD 32" Full-HD, 1920×1080
Touch­screen

Multitouch (projected capacitive)
Speicher

N3060/3160: DDR3L SO-DIMM Modul max. 8GB
i3/i5/i7: DDR4 SO-DIMM Modul max. 16GB
Ethernet

2x 10/100/1000Mbps
Seriell / USB

N3060/3160: 2x USB 3.0, 1x RS232
i3/i5/i7: 4x USB 3.0
Massenspeicher

2,5" SATA HDD, mSATA SSD oder mSATA-DOM
Erweiterung

PCI; PCIe; WLAN; RS232/422/485; USB; Audio
Betriebssystem

Microsoft® Windows 7, Microsoft® Windows Embedded Standard 7, Microsoft® Windows 8.1, Microsoft® Windows Embedded 8 Standard, Microsoft® Windows 10, Microsoft® Windows 10 IoT
Maße (BxHxT)

781,5x476x92 mm
Gewicht

17,3 kg
Netzteil

115/230 VAC
Anmerkung Netzteil

90-264 VAC
Option

Wandhalterung, Auch als Monitoreinheit mit VGA- und/oder DVI-Eingang erhältlich.option
